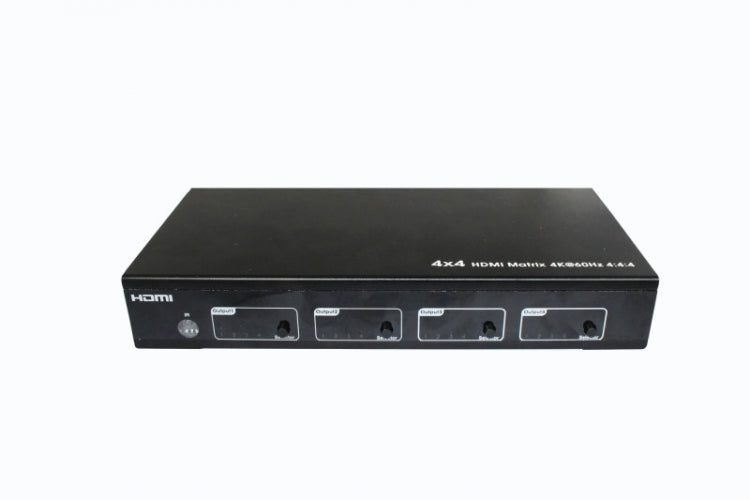

4x4 HDMI2.0 Matrix Switch Support 4K@60hz YUV4:4:4, 18Gbps, HDCP2.2, HDR
Click to zoom in

4x4 HDMI2.0 Matrix Switch Support 4K@60hz YUV4:4:4, 18Gbps, HDCP2.2, HDR

SX-MX09B
$499.99
$499.99

4x4 HDMI2.0 Matrix Switch Support 4K@60hz YUV4:4:4, 18Gbps, HDCP2.2, HDR

4x4 HDMI2.0 Matrix Switch Support 4K@60hz YUV4:4:4, 18Gbps, HDCP2.2, HDR

The SX-MX09B is a HDMI2.0 HDCP2.2 4K@60hz YUV4:4:4 with data transmission banwidth up to 18 Gbps 4-by-4 HDMI true matrix. It allows any four source (Blue-Ray player, HD DVD player, satellite receiver, game system, etc.) to be shown on the any of the four displays simultaneously, no matter whether the source is HDCP or not.

The Matrix Switch has the ability of equalization and amplification to ensure HDMI signal's transmission through long cable without quality loss.

Features

  • HDMI 2.0 version (Support 4K@60Hz YUV4:4:4)
  • Bandwidth upto 18Gbps
  • HDCP2.2 input ,HDCP2.2 output
  • HDCP1.4 input, HDCP1.4 output
  • Support HDR10
  • 4xHDMI Input, 4xHDMI output with 4xSPDIF Audio
  • Any one of the 4 Ultra HD sources to any one of the 4 Ultra HD displays
  • Support Panel Button, Local IR, RS232 Control with command, IP Control, Web GUI Control
  • Support Dolby True HD and DTS-HD master audio, Dolby Atmos under copy EDID mode
  • Support firmware updating through USB port
  • Unit size: L216XW105XH34mm

Specifications

  • Operating Temperature: 23°F to 113°F (-5°C to 45°C)
  • Storage Temperature: -4°F to 140°F (-20°C to 60°C)
  • Resolution: 480p@60hz,576P@50hz,720P@60hz1080P@24hz,1080P@50hz,1080P@60hz,4K@24hz,4K@30hz, 4K@60hz YUV4:2:0, 4K@ 60hz YUV4:4:4
  • HDCP Compliant: HDCP2.2 and HDCP1.4
  • Output Video: HDMI2.0 and HDMI 1.4
  • Audio Format Supported: PCM, Dolby5.1/7.1, DTS5.1/7.1 digital audio, Dolby Atmos
  • RS-232 serial port: 3PIN terminal block connectors
  • Ethernet port (IP control): RJ45, female
  • IR Ext port: 1x3.5mm stereo jack
  • USB port: Micro 5P female
  • Bandwidth: 18 Gbps
  • Default IP: 192.168.1.168
  • Rack-Mountable: Rack ears included
  • Dimensions: (WxHxD) L216XW105XH34mm
  • Net Weight: 0.72kg
  • Power consumption: 13W(Max)

Package Includes

  • 1x HDMI Matrix
  • 1x 5V DC power supply
  • 1x Remote control
  • 1x IR Ext RX Cable
  • 1x Phoenix plugs for RS232 cable termination
  • 1x mounting kit
  • 1x CD for control software & user manual
