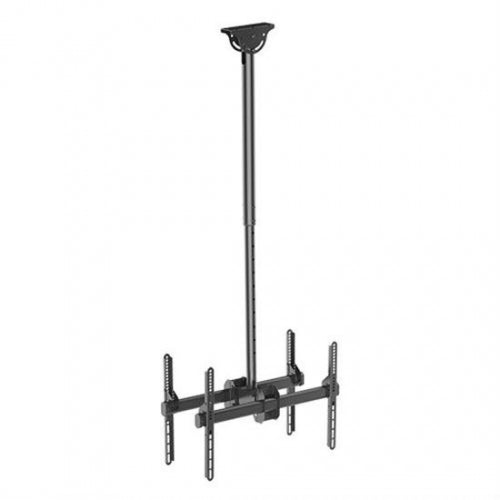

BRATECK Dual 37-70" Ceiling Mount Bracket for LCD/Plasma TV
PLB-CE946-01LD
BRATECK Dual 37-70" Ceiling Mount Bracket for LCD/Plasma TV
The PLB-CE946-01LD is a flexible ceiling mount designed to provide extra possibilities by allowing two screens to be placed back-to-back. Tilting ceiling plate for a flat and sloping ceiling application. It allows displays to tilt and swivel around the pole without tools. Universal mounting pattern fits virtually any 37"~70" flat panel TVs. Each mount holds up to 45kg/99lbs. Features adjustable height for perfect TV positioning and a wire management channel to keep cables concealed and organised.
FeaturesTelescoping height adjustment for the optimal viewing height
-
Ceiling plate can be adjusted for mounting in flat or sloping ceiling
-
Free-tilting design for multiple monitor viewing angles
-
Built-in level adjustment ensures perfect positioning
-
Cable management keeps everything organized

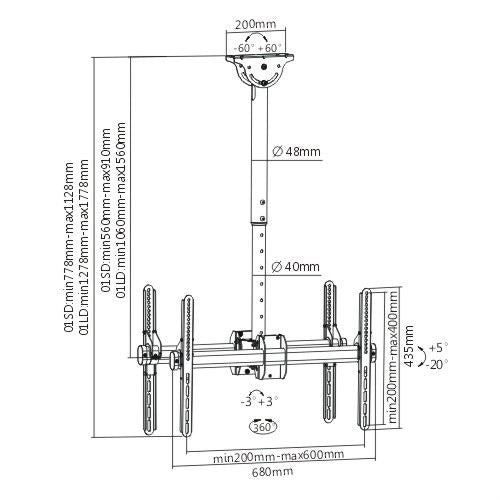

Specifications
- Specification: TV ceiling mount
- By Function: Tilting
- By Mounting Pattern: Universal
- Material: Steel
- Surface Finish: Powder coating
- Available Colour: Black
- Product Size: 680x432x1778mm
- Recommended Screen Size: 37"~70"
- Installation: Ceiling
- Rated Weight Capacity: 45X2kgs/99X2lbs
- Strength tested: 3 times approved
- Max. Hole Pattern: 605x405mm
- VESA Standard: 200x200, 400x200, 300x300, 400x400, 600x400
- Tilt: +5°~-20°
- Swivel: -180°~+180°
- Level Adjustment: -3°~+3°
- Rotating: No
- Profile: 1060~1560mm
- Bubble Level: No
- Anti-theft: No
- Cable Management: Yes
- Wall Separated: No
- Panel Separated: Yes
- Freely positioned: Yes
- Motorized: No
