HDMI HDBaseT Extender over Single Cat5e/6 up to 70 meters with HDCP2.2, POC, 4K, CEC, RS232, Bi-directional IR
Click to zoom in

HDMI HDBaseT Extender over Single Cat5e/6 up to 70 meters with HDCP2.2, POC, 4K, CEC, RS232, Bi-directional IR

SX-EX33
$429.99
$429.99

HDMI HDBaseT Extender over Single Cat5e/6 up to 70 meters with HDCP2.2, POC, 4K, CEC, RS232, Bi-directional IR

HDMI HDBaseT Extender over Single Cat5e/6 up to 70 meters with HDCP2.2, POC, 4K, CEC, RS232, Bi-directional IR

70m HDBaseT Extender with 4Kx2K (UHD), HDCP2.2, POC, CEC, RS232, Bi-directional IR

Features

  • Incorporates HDBaseT Technology
  • Supports resolution up to Ultra HD 4Kx2K
  • Transmission distance reaches up to 70 meters under the video format of 1080P and 4K up to 40 meters
  • POC( Receiver powered by Transmitter)
  • Support 3D
  • HDCP2.2/1.4 compliant
  • CEC pass through
  • Support wide-band Bi-directional IR (38KHZ to 56KHZ)
  • IR extension from transmitter to receiver or from receiver to transmitter
  • Phoenix RS232 Port for firmware update or RS232 control signal transmission

Package Includes

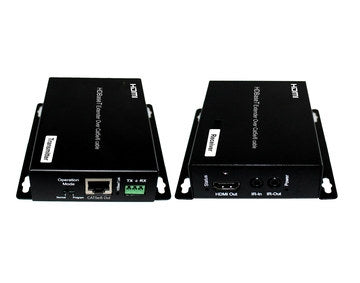

  • Main unit (SX-EX33).
  • Operating instructions. (SX-EX33).
  • 12VDC power supply.(only for TX, RX can be powered from TX)
  • 2xIR TX unit. (IR emitter cable, 1 pcs for TX, 1 pcs for RX)
  • 2xIR RX unit. (IR receiver cable, 1 pcs for TX, 1pcs or for RX)
  • 2 Phoenix plugs for RS232 cable termination


Product Brochure

Read More
Read Less
