Accell Mini DisplayPort 1.2 to 2 DisplayPort Multi-Display MST Hub
Accell Mini DisplayPort 1.2 to 2 DisplayPort Multi-Display MST Hub
Click to zoom in

Accell Mini DisplayPort 1.2 to 2 DisplayPort Multi-Display MST Hub

K088B-005B
$199.99
$199.99

Accell Mini DisplayPort 1.2 to 2 DisplayPort Multi-Display MST Hub

Accell Mini DisplayPort 1.2 to 2 DisplayPort Multi-Display MST Hub

Mirror or Extend your Desktop Over 2 Displays

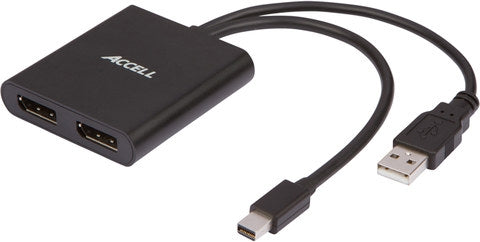

The Accell UltraAV Mini DisplayPort Multi-Display MST Hub allows you to connect up to 2 DisplayPort monitors from a single Mini DisplayPort output. The multi-display hub utilizes multi-stream transport (MST) protocol, supporting up to 2 displays independently at 2560x1600 @ 60Hz (reduced blanking) or 3840x2160 @ 30Hz (reduced blanking) each with DP 1.2.

Ideal for use with Microsoft Surface Pro 2 or Surface Pro 3 Computers

Expand your display beyond the compact display integrated into your Surface Pro 2, Surface Pro 3 or other Mini DisplayPort enabled laptop or desktop computer. Now you can extend your desktop onto two large, high-resolution monitors and dedicate each display to a separate application, providing the efficiency and productivity of multi-tasking.

Support Dual Mode (DisplayPort ++)

Don’t have 2 DisplayPort Monitors? The MST Hub is Dual Mode or also known as DisplayPort++. It can directly output single-link HDMI, VGA and DVI signals using either a passive or active adapter. Accell’s MST Hub makes it easy and cost effective to use multiple monitors.

Features

  • Provides full display performance with virtually zero latency and no display application limitations.
  • No additional software to install, just Plug-and-Play.
  • Works with a desktop or notebook computer that has a Mini DisplayPort output.
  • Works on a DisplayPort enabled Windows PC or Macintosh computers.
  • Utilizes new Multi-Transport (MST) protocols
  • Scan button refreshes all connections made to the hub.

Specifications

  • Connector: Built-in 7.25” Mini DisplayPort cable (to video card) and 7.25” USB power cable (to USB port)
  • 2 DisplayPort outputs (to monitors) - DisplayPort cables not included
  • Latency: Near zero
  • Approximate dimensions: 2.52"(W) x 2.29"(L) x 0.54"(H)
  • Power: USB powered
  • Supports output resolutions up to 4K x 2K @ 30Hz (RB)
  • Compatible with VGA, DVI and HDMI using optional adapters
  • Compliant with DisplayPort 1.1a and 1.2 specifications, VESA DDM Standard
  • Up to 5.4Gbps/lane link rate for a bandwidth of 21.6Gbps
  • 5.4Gbps (HBR2) -2.7Gbps (HBR) and 1.62Gbps (RBR)
  • Supports HDCP V2.0 and EDID V1.4

System Requirements

  • Graphic Output: Mini DisplayPort v.1.1 or v.1.2
  • Windows PC and Mac OS computers

Important Notes

  • Not for use on a Thunderbolt port.
  • The maximum number of displays that can be enabled at the same time is limited by the number of display pipes.

Package Includes

  • Multi-Display Hub
  • Product Guide

Warranty: 2-Year Replacement
