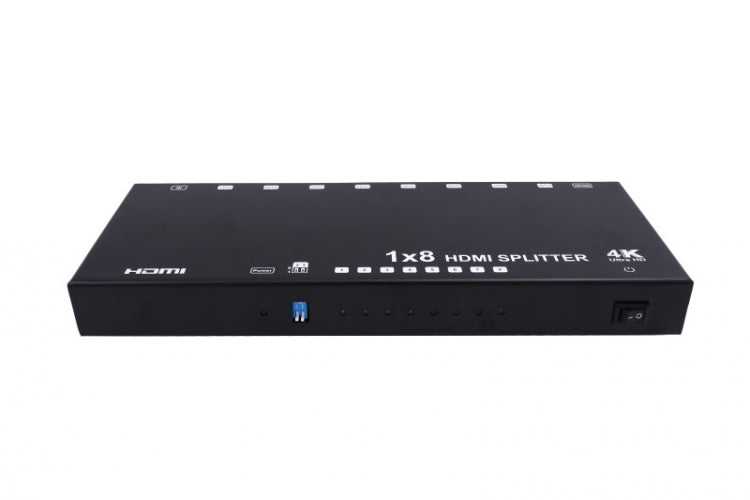

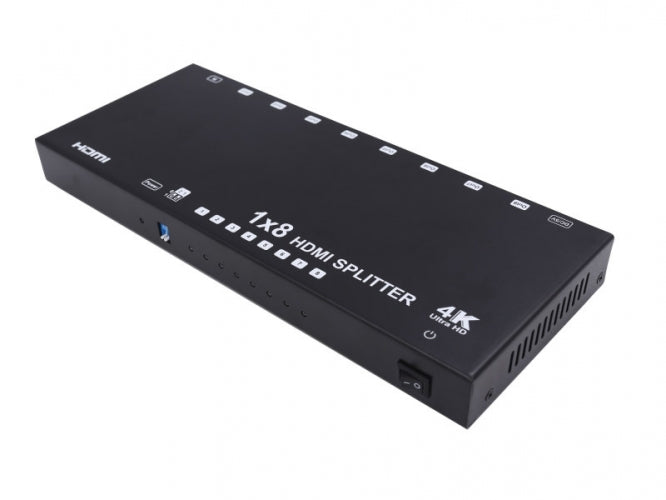

1 in 8 out HDMI 2.0 4Kx2K UHD Splitter
1 in 8 out HDMI 2.0 4Kx2K UHD Splitter
Click to zoom in

1 in 8 out HDMI 2.0 4Kx2K UHD Splitter

SX-SP148E
$399.99
$399.99

1 in 8 out HDMI 2.0 4Kx2K UHD Splitter

1 in 8 out HDMI 2.0 4Kx2K UHD Splitter

This HDMI 2.0 4Kx2K UHD Splitter distributes 1 way HDMI signal from STB, DVD Blu-ray players or PS3 etc.to 8 way HDMI signal to connect to projector, DLP, LCD or other HD displays simultaneously

Features

  • Simultaneously displays an UItra Hi-Def source on up to eight UItra HD displays.
  • Supports resolutions up to UItra HD 4Kx2K(3840x2160@60Hz YUV 4:2:0 ) and 1080p Full HD.
  • Supports four kinds of EDID handling abilities: mixed EDID, copy EDID, default 1080p output, default 4Kx2K output.
  • Supports 36 bit Deep Color.
  • Supports LPCM 7.1, Dolby  TrueHD, Dolby digital  Plus, and DTS-HD  Master Audio.
  • HDCP Compliant.
  • Support 3D.

Specifications

  • Operating Temperature Range: -5 to +35℃(+23 to +95℉)
  • Operating Humidity Range: 5 to 90%RH (No Condensation)
  • Bandwidth frequency: 10.2Gbps
  • Input ports: 1xHDMI(female)
  • Output ports: 8xHDMI outputs(female)
  • Resolution outputs: up to 4Kx2K(3840x2160@60Hz YUV 4:2:0)
  • Dimensions(LxWxH): 270x110x27.5mm
  • Power consumption: 3W(MAX)
  • Transmission Distance: 15m(Maximum)over standard HDMI cable/26AWG
  • Net Weight: 840g


Package Includes

  • 1x HDMI Splitter
  • 1x 5V/1A DC Adapter
  • 1x User Manual
