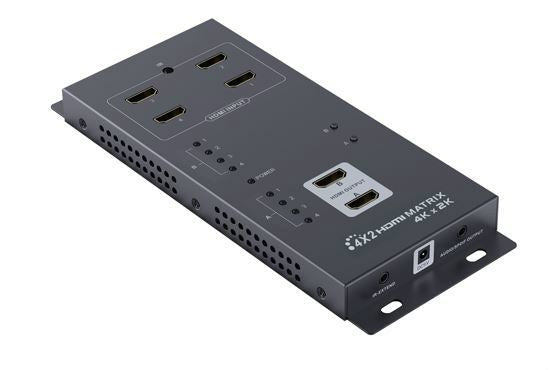

4x2 HDMI 4K2K Matrix Switch Support 4K@30hz, HDCP
4x2 HDMI 4K2K Matrix Switch Support 4K@30hz, HDCP
Click to zoom in

4x2 HDMI 4K2K Matrix Switch Support 4K@30hz, HDCP

LKV342PRO
$99.99
$99.99

4x2 HDMI 4K2K Matrix Switch Support 4K@30hz, HDCP

4x2 HDMI 4K2K Matrix Switch Support 4K@30hz, HDCP

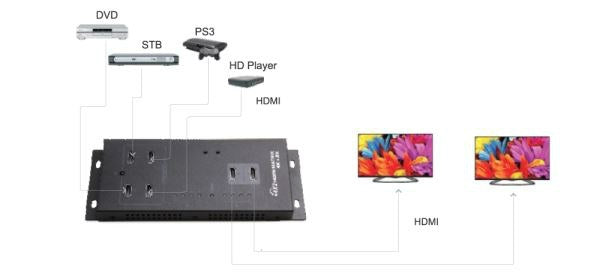

This 4x2 HDMI Matrix Switch has 4x HDMI inputs and 2x HDMI outputs. It is a true matrix switch and can distribute any one of 4x sources to any 2x displays and can work as a splitter to show the same source on 2x displays simultaneously. Analogue R/L audio and digital SPDIF audio can be extracted from HDMI signal. It supports 3D HDMI and HDMI1.4 (4K2K).

Features

  • Routes four Ultra Hi-Def sources to two Ultra HD displays
  • Supports resolutions up to Ultra HD 4K2K (3840 x 2160@30Hz) and 1080p Full HD
  • Supports 12-bit Deep Color
  • Supports PCM, Dolby Digital™ and DTS Digital Surround™
  • Support audio output simultaneously (from output A)
  • HDMI input/output cables may be up to 10/15m with a 1080p/8-bit resolution
  • Supports HDMI/MHL dual mode input (input 1)
  • Supports CEC
  • Supports HDCP
  • Supports IR remote control
  • Supports surface-mountable

Specifications

  • Power Supply: 5V/3A
  • Input Ports: HDMI x4
  • Output Ports: HDMI x2
  • Power Indicator LED: Yellow LED x1
  • Signal Indicator LED: Blue LED x8
  • Frequency Range: 25MHz~340MHz
  • Max Transmission Rate: 3.4G x 3 = 10.2Gbps
  • Colour Depth: Supports 12-bit DeepFull HD,
    Full 3D and 4K2K Video
  • Audio: Supports Standard Audio and DSD (Direct Stream Digital)
    Audio and HD (HBR) Audio
  • HDMI Resolution: 480i@60hz. 480o@60Hz, 576i@50Hz, 576P@50Hz,
    720p@50@60Hz,1080i@50@60Hz, 1080p@50@60Hz,
    3D HDMI (720p@50@60Hz, 1080p@24Hz),
    3840 x 2160p@24@25@30Hz
  • Dimension: 213 x 86 x 19mm
  • Net Weight: 390g
  • Colour: Black
  • Working Temperature: 0°C~60°C
